Models and Specification for 300 Series Automatic Horse Waterers
| Free Standing 300 Series |
 |  |
|
| Model | 300-8 | 300-24 |
| House Material* | Aluminum or Stainless Steel | Aluminum or Stainless Steel |
| Height | 9" | 25" |
| Capacity | 10-12 Horses | 10-12 Horses |
| Diameter | 13" | 13" |
| Optional Immersion Heater** | 120 VAC, 200 Watt, 1.6 Amp | 120 VAC, 200 Watt, 1.6 Amp |
*Housing Material: Your choice of high strength, 0.105″ thick 304 stainless steel or aircraft grade, 0.125″ thick 6061 aluminum.
**Optional Heater: Fully insulated immersion type heater. 2-wire with ground connection. Thermostat and waterer housing insulation included.
Mounting Options

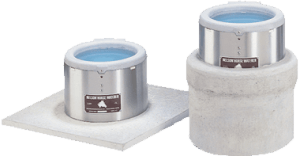

300-8
Pour a concrete pad for smaller animals or mount in the bell of a concrete sewer pipe.
300-24
Bolt to a poured concrete pad to water taller animals.
300-24
Large 13″ bowl serves more horses and is well suited for fence line installations.

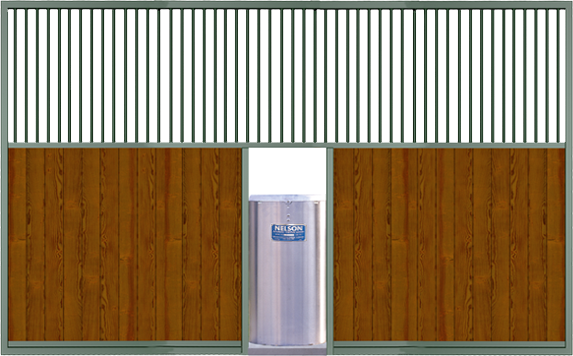

300-24
Ideal for between-the-stall installation.
